How to Replace a Jeep Key Fob Battery Without Damaging the Case

Do not buy a battery based only on the Jeep badge. Jeep has used different fob housings and access methods across models and years. Even one owner’s manual can cover fobs with an emergency key, an optional case screw and more than one opening method. Start with the model year and the physical fob in your hand.

For example, the 2016 Jeep Cherokee manual specifies one CR2032 for its documented RKE fob. It also says the emergency key can unlock the vehicle if either the vehicle battery or fob battery is dead (2016 Cherokee owner’s-manual text). That is a useful example, not proof that every Jeep fob takes a CR2032.

What to check before opening the fob

1. Find the applicable owner’s manual. Match the Jeep model, model year and market.
2. Inspect the casing. Look for a sliding emergency-key release, a visible screw, a battery tray or a defined split line around the shell.
3. Confirm the cell from two places. Use the manual’s specification and the code printed on the installed battery—such as CR2032—before buying the replacement.
4. Record orientation. Before lifting the old cell, note whether its marked positive face points up or down. A quick phone photo prevents guesswork.

Stop if the installed battery code conflicts with the manual, the fob does not match the manual’s illustration, or the case has no obvious service seam. Forcing the wrong joint can damage clips, the sealing edge or the circuit board.

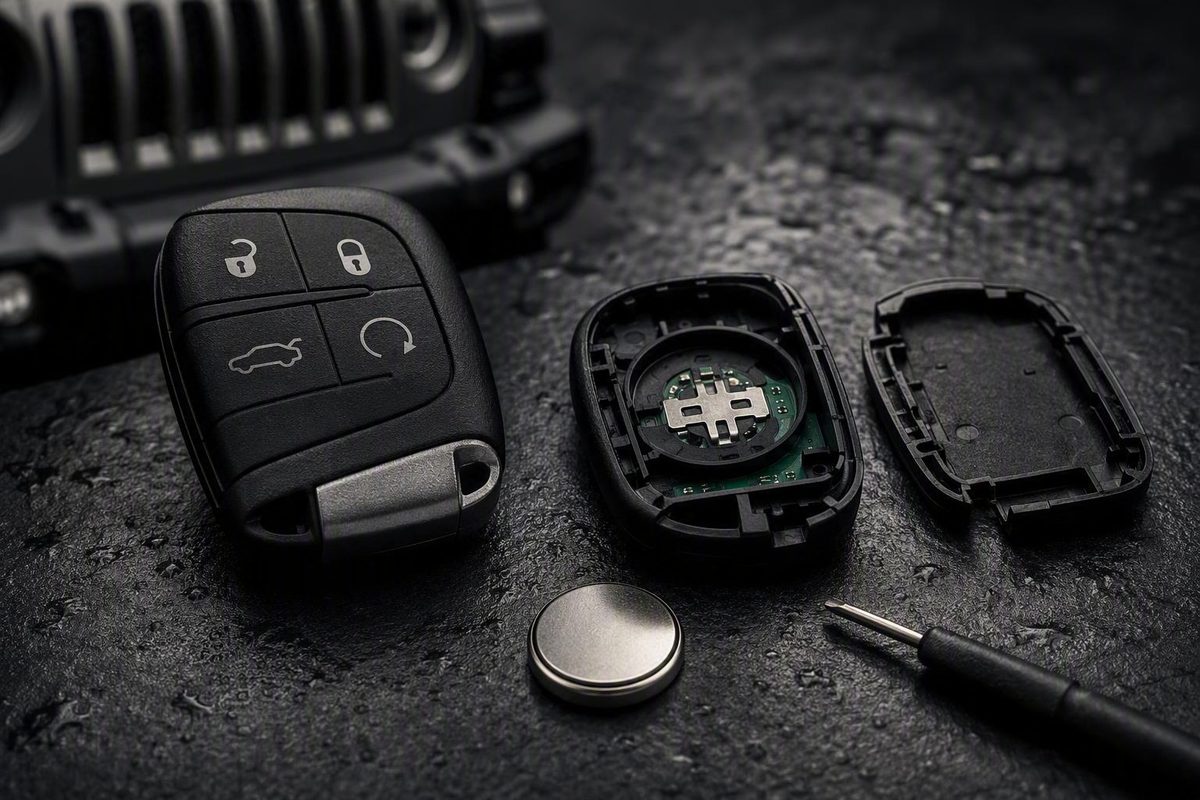

Replacement sequence for a split-case Jeep fob

Use a clean table, the correct coin cell and the emergency key or a small non-marring pry tool. A precision screwdriver may be necessary only when the casing has a screw.

1. Release and remove the emergency key, if fitted.
2. Remove the case screw, if your fob has one. Do not assume every version does.
3. Open the specified seam gently. Insert the emergency key or tool only far enough to separate the shell, then work around the edge rather than twisting hard in one spot. The 2016 Cherokee procedure specifically calls for screw removal “if equipped,” followed by gently prying the halves apart with the emergency key while avoiding damage to the seal (2016 Cherokee owner’s-manual text).
4. Lift out the old battery without disturbing the board or contacts. Jeep’s documented procedure warns against touching the terminals on the rear housing or the printed circuit board.
5. Install the identical battery code in the recorded orientation. Hold the new cell by its edge. The same manual warns that skin oils can contribute to battery deterioration and says to clean a touched cell with rubbing alcohol (2016 Cherokee owner’s-manual text). Let it dry before installation.
6. Check the seal and button pad. Make sure neither has shifted out of its channel.
7. Align the shell and press around its perimeter until every clip closes. Refit the screw and emergency key where applicable.

The principles are similar to changing a VW key-fob battery safely, but use the Jeep-specific manual and installed cell to settle compatibility and access.

Test before relying on it

Stand near the Jeep and test lock, unlock, panic, liftgate and remote start buttons that are actually fitted. Check that the case remains fully closed after each press.

If the fob still fails, reopen it once and verify battery code, polarity, seating and contact alignment. Then try the spare fob. If neither fob works, or if the replacement cell immediately produces intermittent operation, stop treating the problem as a routine battery swap; the fault may be in the fob, vehicle receiver or vehicle’s 12-volt electrical system. A damaged shell, loose battery contact or missing seal is also a reason to seek key-fob repair rather than applying more force.
